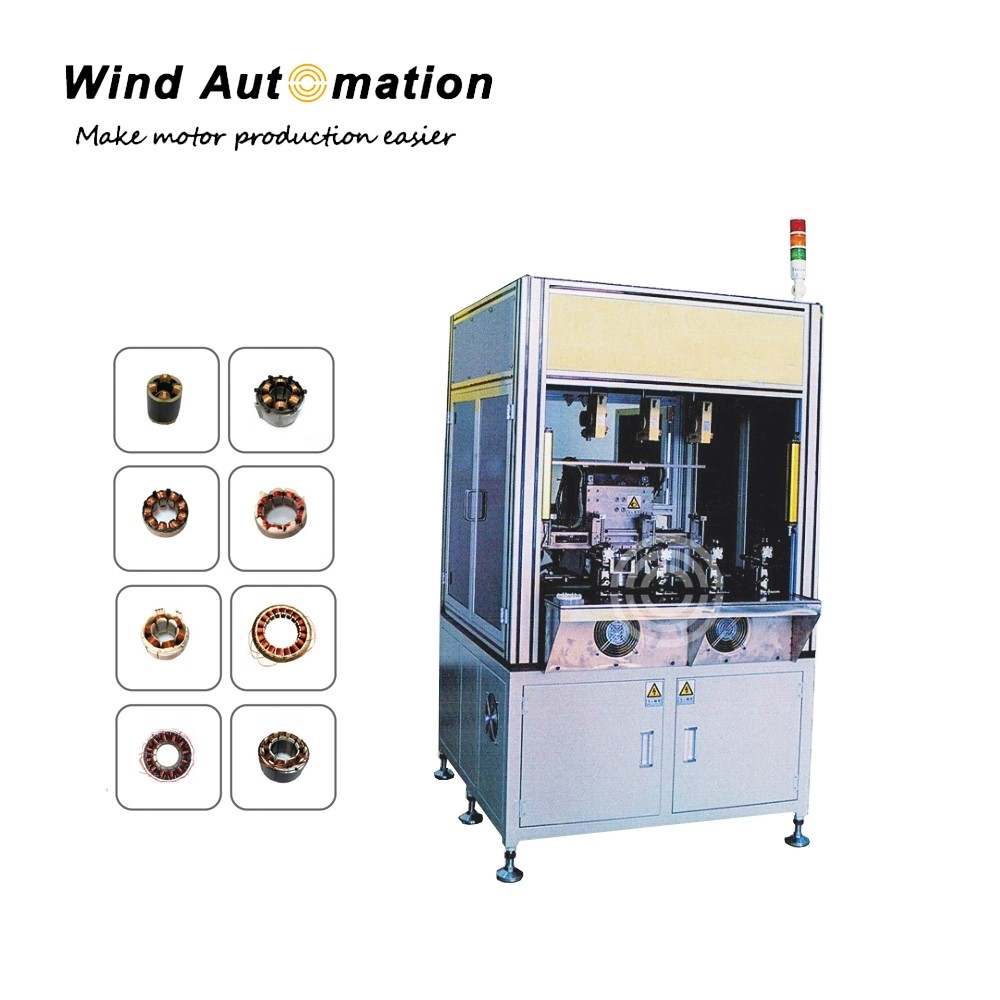

Customized Brushless Motor Inslot Needle Winder Coil Winding Machine
(1) Specification
| Working station | 2 |
| Stator ID | Min 28mm |
| Slot number | 4~18 |
| Stator OD | Max 120mm |
| Wire range | Min 0.08mm |
| Air source | 0.5--0.7Mpa |
| Power supply | 380 V, 50/60HZ |
| Dimension | 1450x1200x1800mm |
| Weight | 550KG |
(2) Application

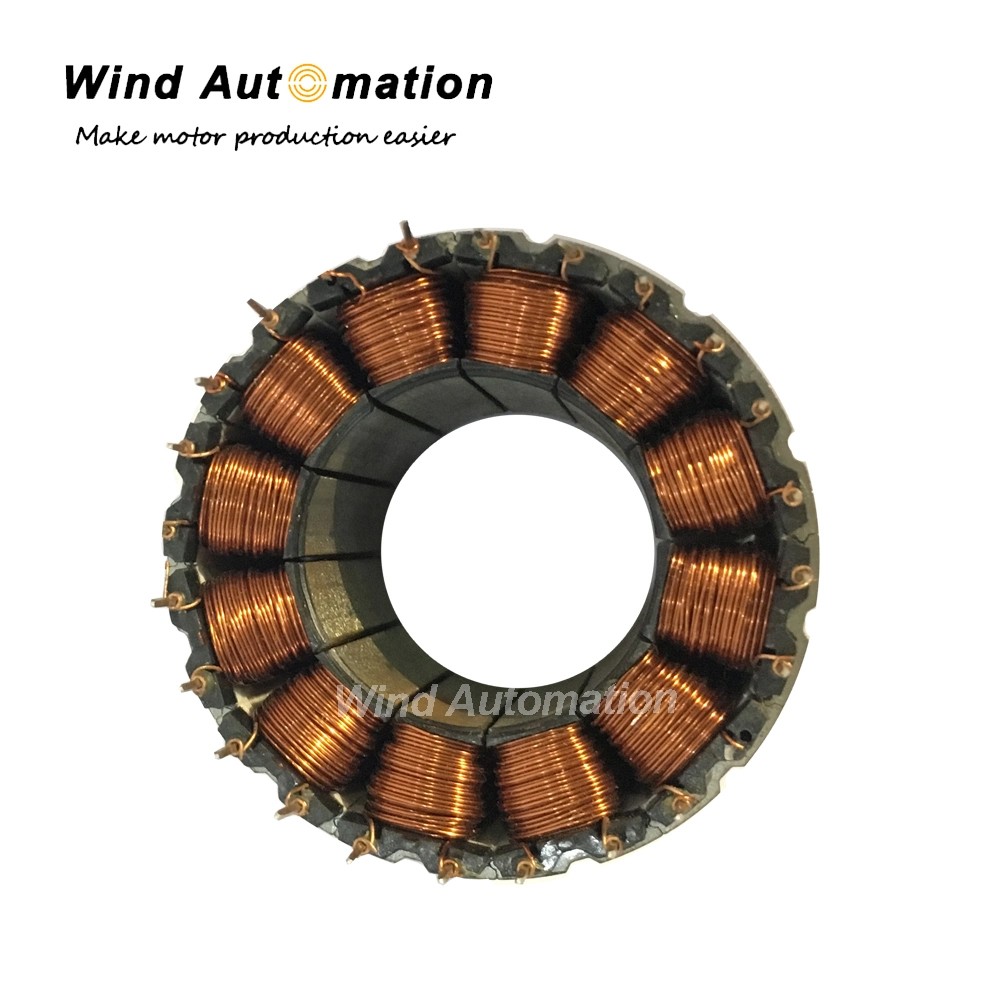

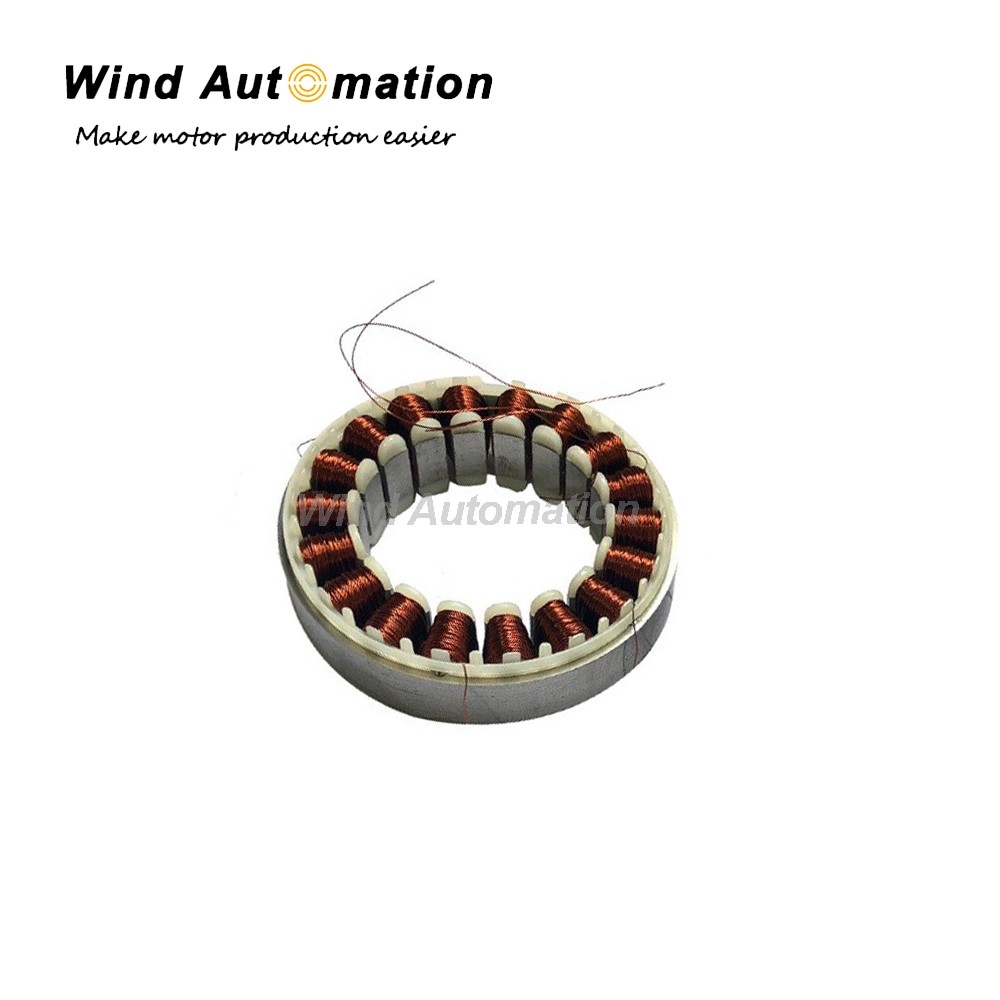

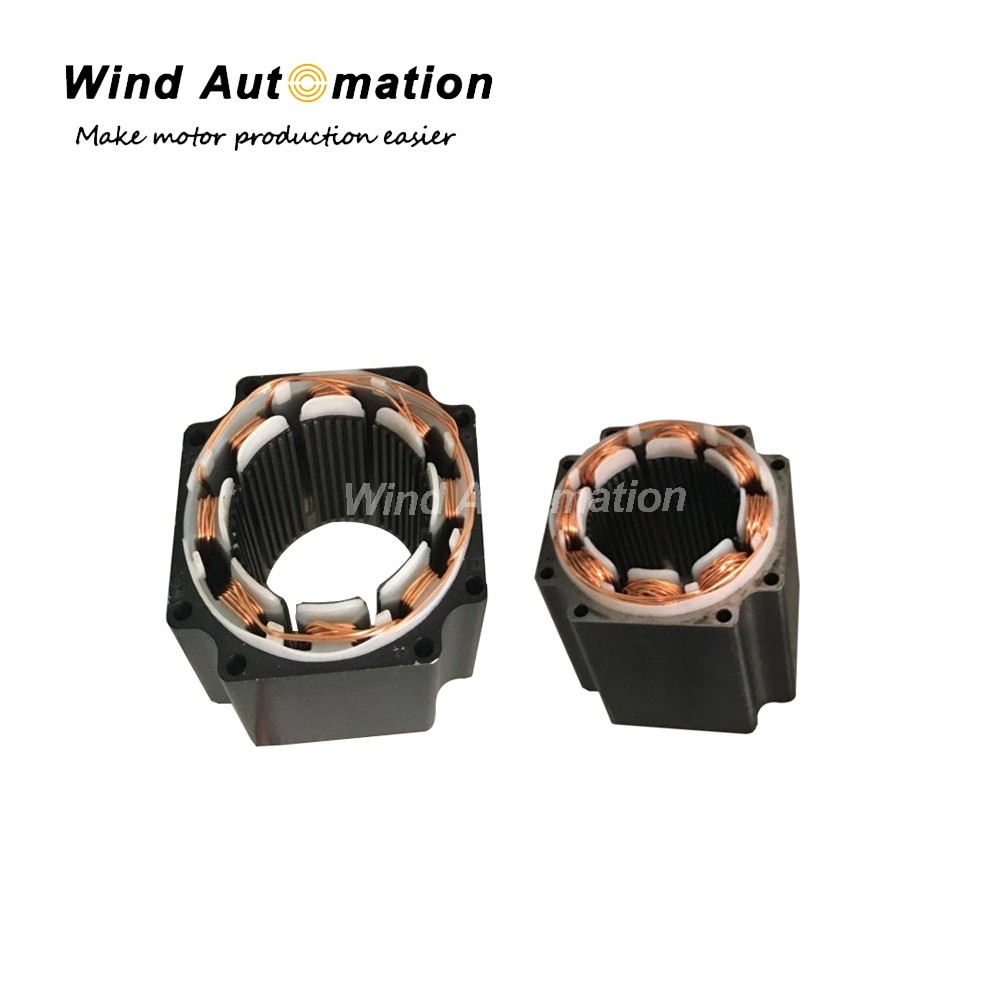

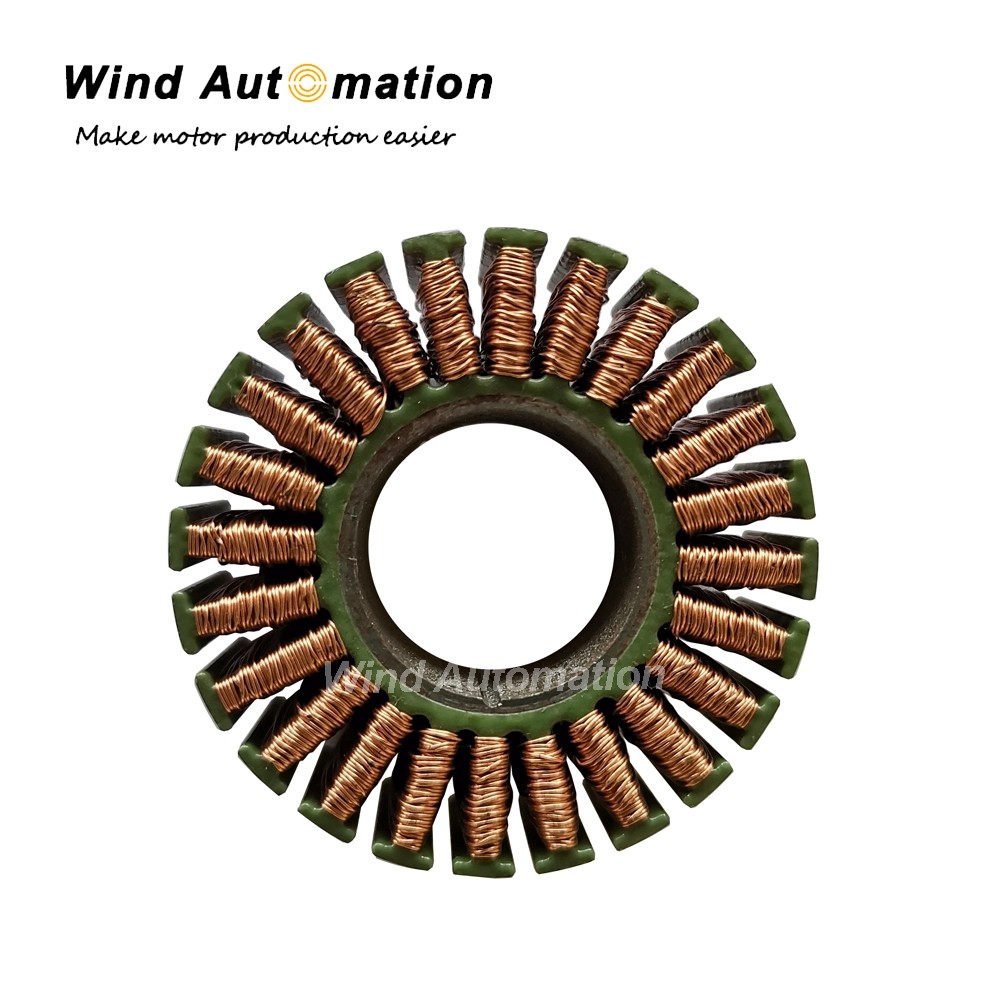

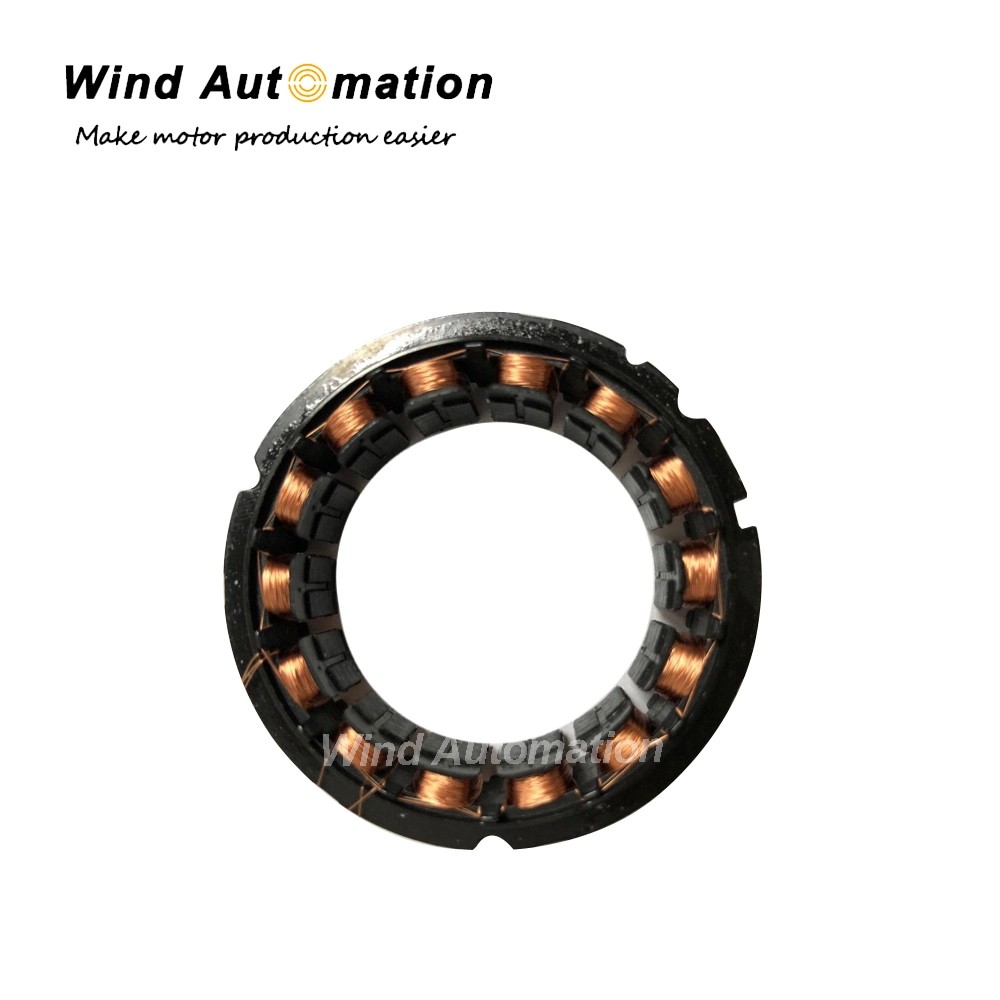

It is suitable for brushless motors.
(3) Features
High efficiency and production
Precise servo drive control of the wire feeding
2 working stations to do synchronous winding
High quality level of the winding process
Provide customized service
